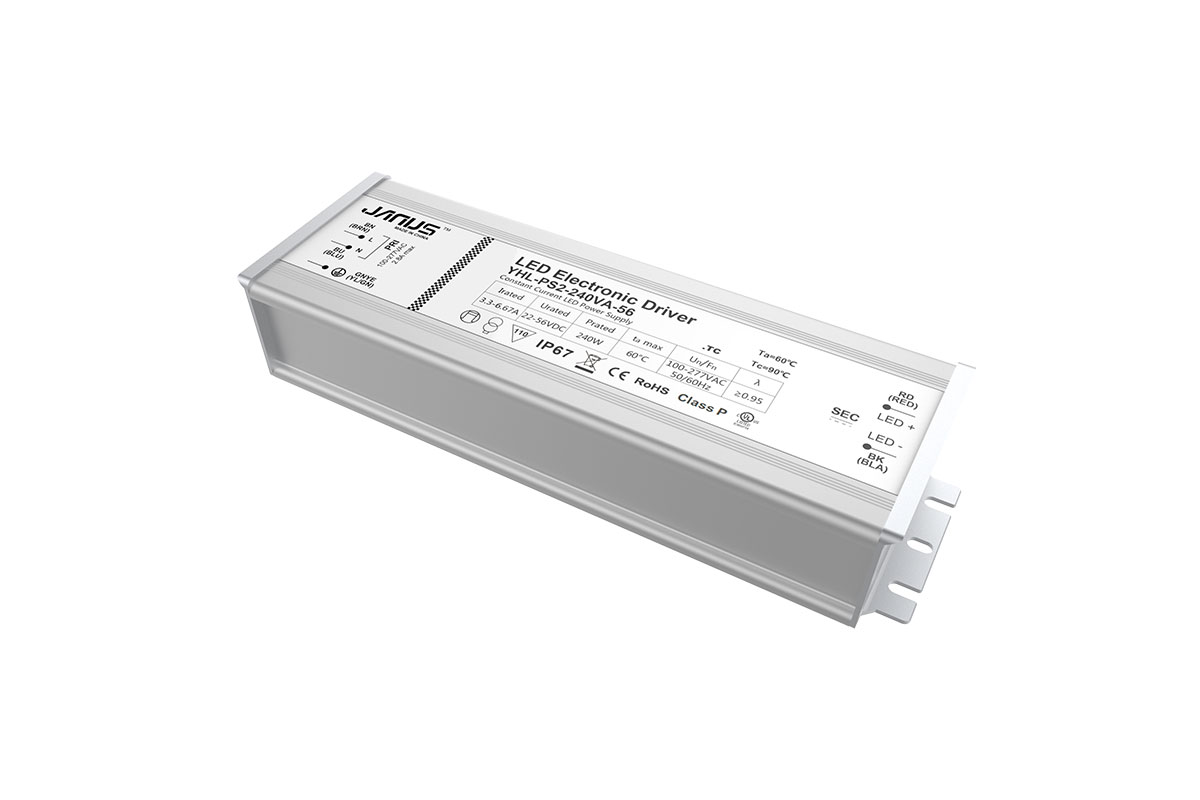

LED Electronic Driver










LED Electronic Driver

LED electronic driver is an electrical device that regulates power to LED light. It can be widely used in LED high bay, LED flood light, LED street light, etc.








Model No.

YHL-PS2-75VA-56

YHL-PS2-100VA-56

YHL-PS2-150VA-56

YHL-PS2-200VA-56

YHL-PS2-240VA-56

Rated Output Power

75W

100W

150W

200W

240W

Rated AC Input Range

100-277VAC

Input Frequency Range

50/60Hz

Output Voltage Range

22V~56V

Current Adjustable Range(AOC)

1.2A~2.4A

2.3A~3.0A

2.1A~4.2A

2.8A~5.6A

3.3A~7.0A

Power Factor

0.95

Operating Temperature(Tcase)

-40~90

Dimension

L172mm×W66mm×H35.5mm

L179mm×W66mm×H35.5mm

L201mm×W71mm×H39.6mm

L222mm×W71mm×H39.6mm

L244mm×W71mm×H39.6mm

Protection Rating

IP67

Warranty

5 years

Certification

CE, RoHs, UL, Class P



Get Dialux supported recommendation and very competitive quotation!
