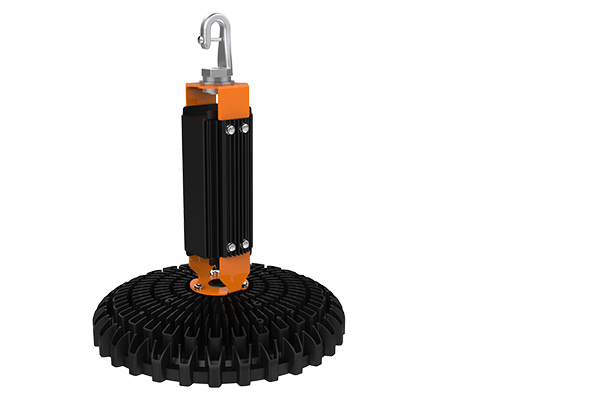

Compact V LED High Bay Light






High Temperature Resistant Design

With revolutionary air flow design, high temperature LED chips and advanced graphene technology, Compact V keeps well-functioning even in 65℃.

















Tempered Glass Cover

First-class tempered glass cover with heat resistance and more than 90% light transmittance.



















Advanced Graphene Technology

Compact V adopts the advanced Hi-G thermal greaseas its thermal fillers and enhanced a superb thermal.












Specification

Rated Wattage: 100W/150W/ 200W
Rated Voltage: 200-240Vac, 47/63Hz
Luminaire Efficacy: 130lm/W
Lumen Output: 13,000lm -26,000lm
CCT: 5000K(3000K/4000K Optional)
CRI: Ra>70(Ra >80 Optional)
Beam Angle: 120°
IP Rating: IP65
IK Rating: IK08
Operating Temp: -40~+65℃
Warranty: 5 Years
Compact V LED High Bay Light is suitable for Workshop, Warehouse, Gymnasium, Gas station, Shopping mall, Garage and other Lighting Purposes.


Optional

1-10V dimming
Motion sensor
