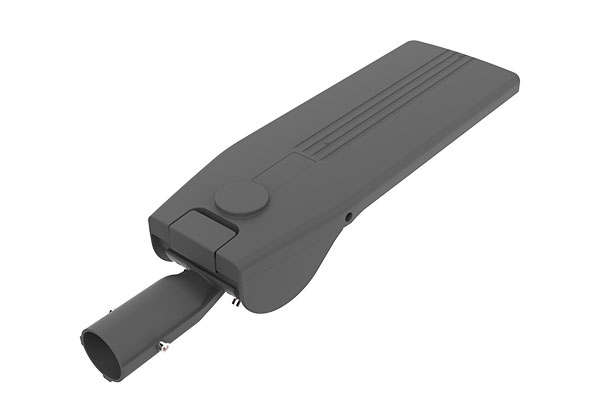

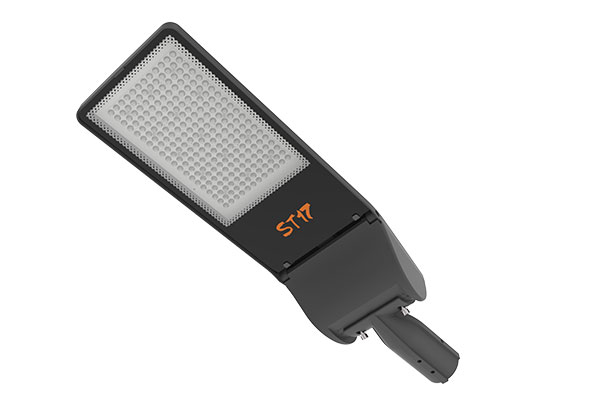

Sleek LED Street Light








Radiator

The shell is made of aluminum alloy die casting technology, which has strong impact resistance and high weather resistance. Streamlined heat sink with supreme thermal dissipation, and easy to clean by rain, it can be self-cleaning























LED Chip

Adopt Nichia Chip, which own long lifespan (100,000hrs) with low glare, no blue light and uniform light distribution that to improve visual comfort.





















Lens

There are two types lens can be chosen. The most prominent is LEDiL lens. YAHAM make a good cooperation with LEDiL to make sure the diversity of light distribution to meet more different roads.










Specification

Rated Wattage: 90W/120W/150W
Rated Voltage: AC100-240V, 50/60Hz
Luminaire Efficacy: 120lm/W
Lumen Output: 10,800lm - 18,000lm
CCT: 5000K (3000K/4000K Optional)
CRI: Ra75(Ra80 Optional)
Beam Angle: TYPEII(85°x150°), TYPEIII(80°x150°), TYPEIV(75°x100°), TYPEV(130°)
IP Rating: IP66
Warranty: 5 Years
Sleek LED street light Outer Mounting Diameter in mm for all wattages: 60mm(50-60mm)
Photocell and 15KV SPD options available
Applications: urban and rural roads, municipal roads, houseware area

Certification

CE         RoHS


Subject to change without notice.
